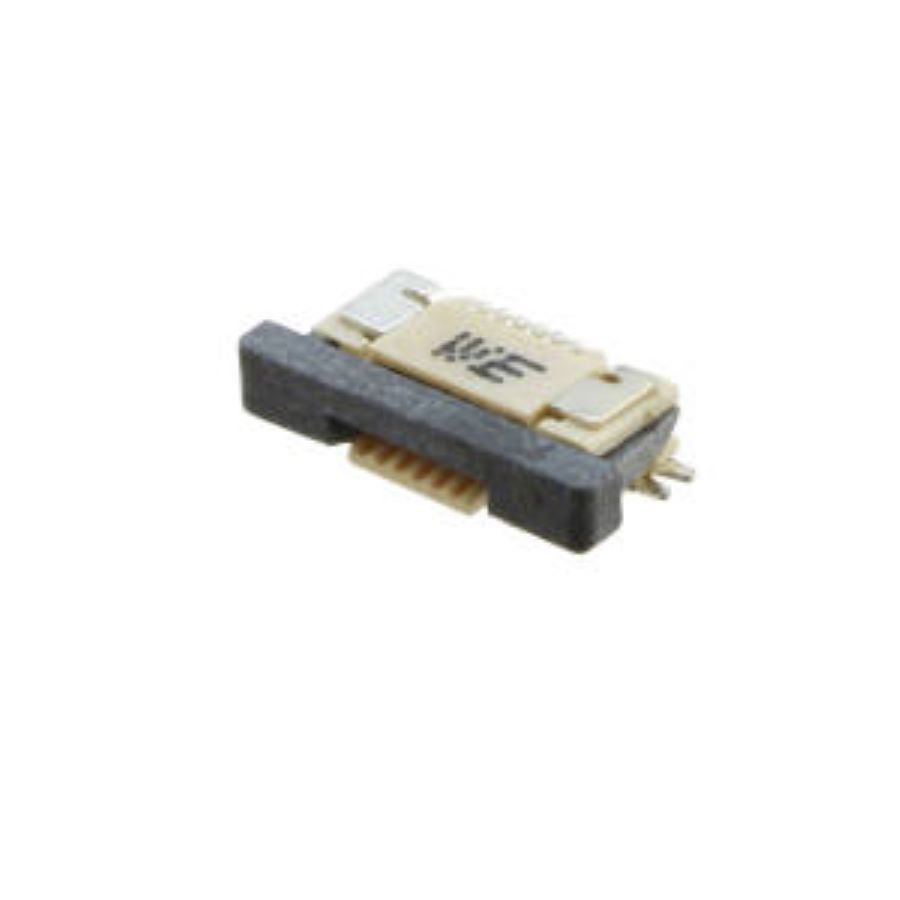

68710614522
Manufacturer:
Wurth Electronics
Mfr.Part #:
68710614522
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:6 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 9.4 mm |
| Width | 2.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 6 |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94V-0 |
| Orientation | Horizontal |
| Operating Supply Voltage | 50 V |
| Gender | Male |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Liquid Crystal Polymer |
| Contact Location | Bottom |
| Contact Resistance | 20 mΩ |
| Actuator Material | Liquid Crystal Polymer, Polymer |
Stock: 5943
Distributors
pcbx
pcbxUnit Price$0.63180
Ext.Price$0.63180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63180 | $0.63180 |
| 10 | $0.60871 | $6.08710 |
| 25 | $0.58695 | $14.67375 |
| 50 | $0.56596 | $28.29800 |
| 100 | $0.52493 | $52.49300 |
| 300 | $0.50310 | $150.93000 |
| 500 | $0.48218 | $241.09000 |
| 1000 | $0.39669 | $396.69000 |
